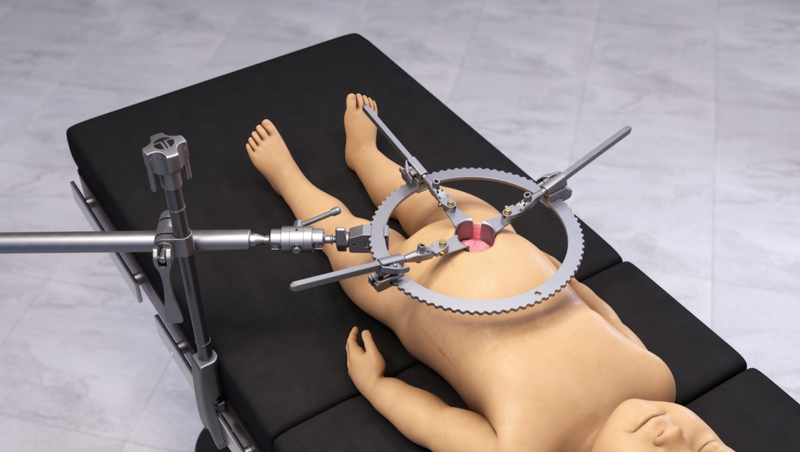

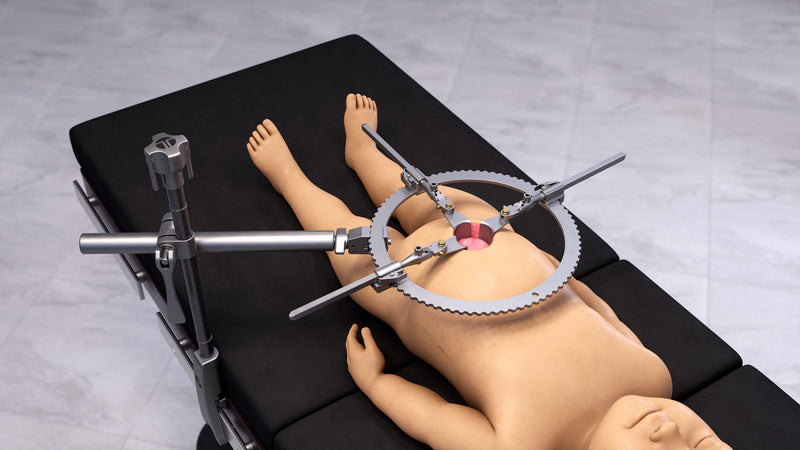

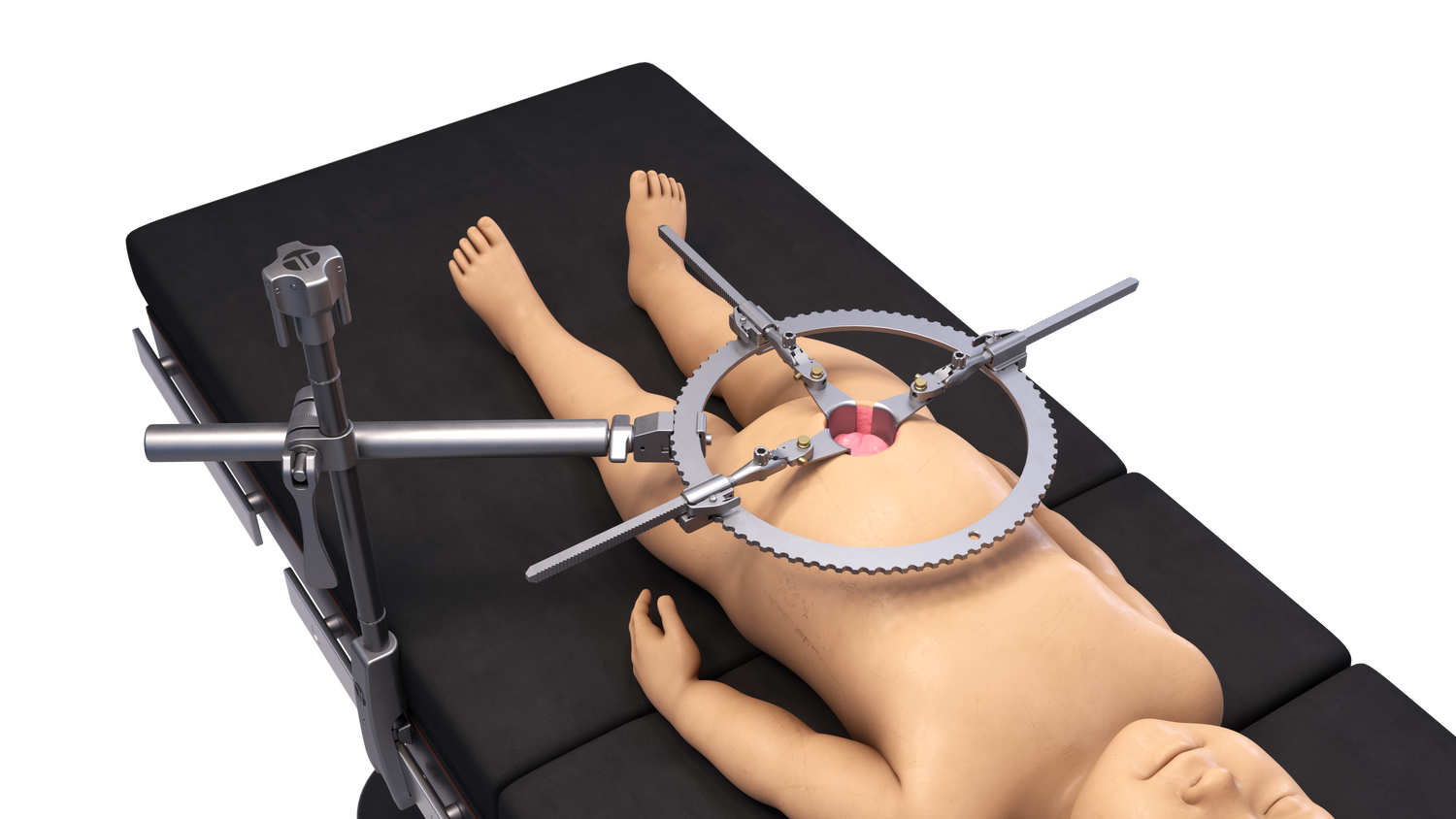

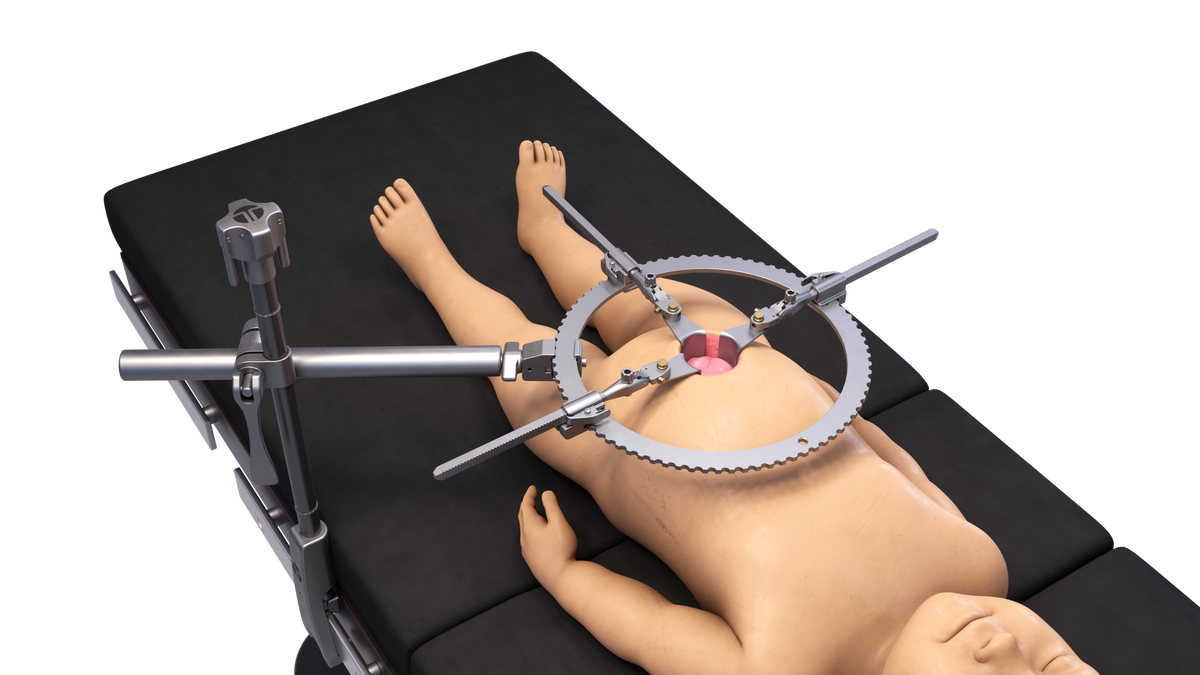

The Pediatric Abdominal RingTrack® Retractor Set provides a table-mounted ratcheted ring around the operative field. Ratchets can be positioned at selected locations on the ring, allowing individual blades to approach the incision from different directions while maintaining a stable frame foundation.

RingTrack® can be configured with the appropriate ring size for the procedure, and the ratchets can be added or repositioned around the ring according to the desired retraction points. Quick Angle Handles can also angle individual blades up or down while maintaining a low-profile position around the field.

How RingTrack® Supports Pediatric Abdominal Exposure

The Pediatric RingTrack® configuration combines the ratcheted ring-style frame with Thompson’s Pediatric Blade Kit. This provides:

• Multiple independently positioned retraction points
• Multi-directional blade placement around the operative field
• Low-profile handle positioning
• Controlled adjustment of individual blades
• Stable, hands-free exposure for smaller patients

The ring architecture can be useful when the surgical team wants retraction distributed around several points while maintaining clear central access to the abdominal field.

What Is OneFrame® Retraction?

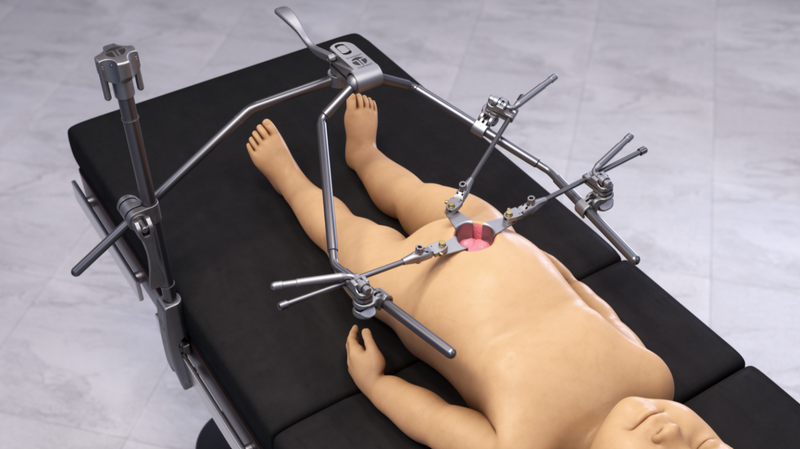

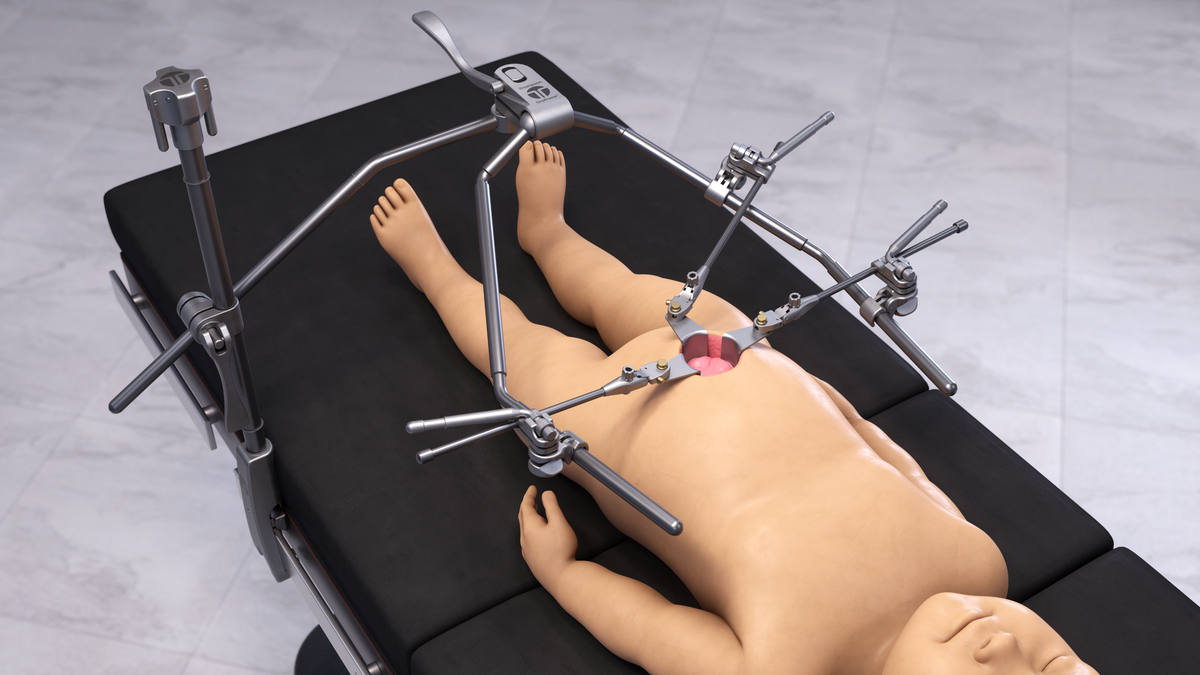

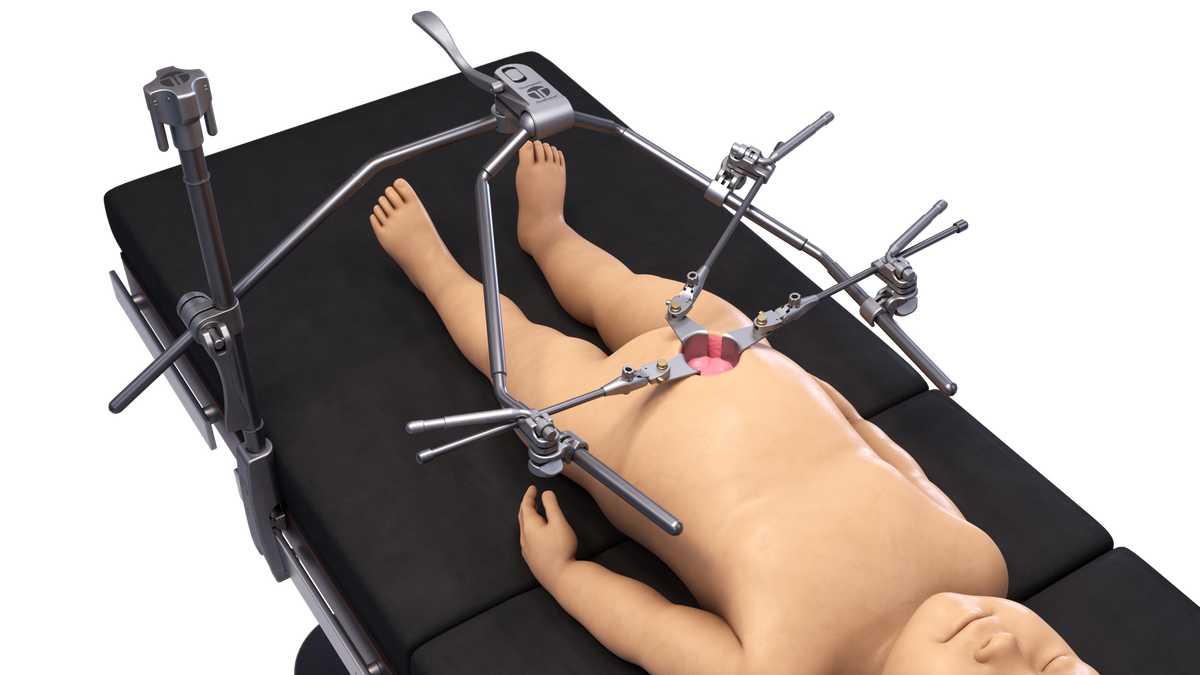

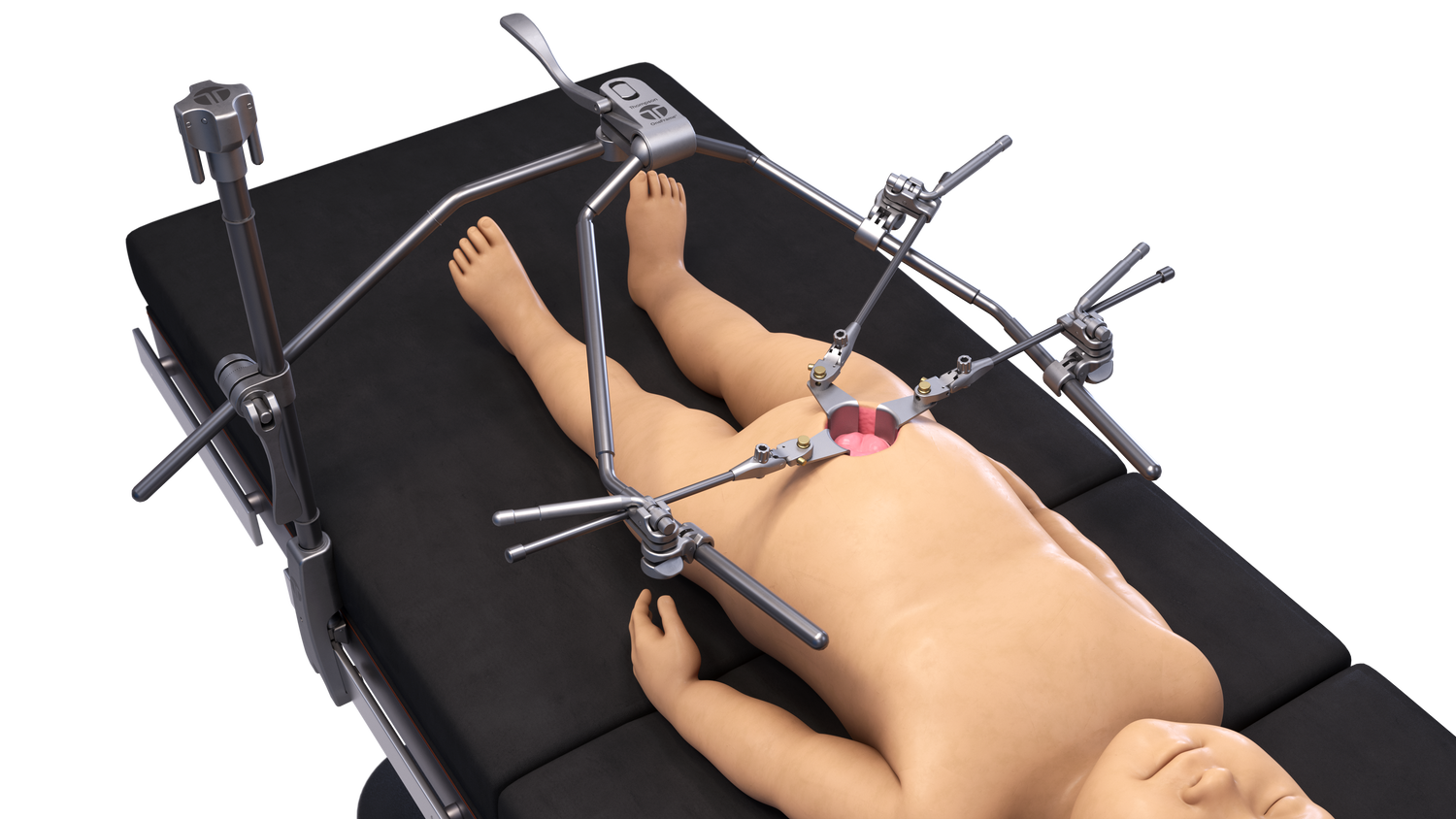

The Pediatric Abdominal OneFrame® Retractor Set combines a compact, low-profile frame with independently positioned blades. The pediatric configuration is scaled for smaller anatomy and allows the frame and individual retraction points to be adapted to the operative field.

Unlike a complete ring surrounding the incision, OneFrame® provides an open frame architecture. Retractor handles can be positioned independently along the frame, allowing the surgical team to establish exposure according to the incision, anatomy, and direction of retraction required.

How OneFrame® Supports Pediatric Abdominal Exposure

The Pediatric OneFrame® configuration supports:

• A compact frame around a smaller operative field
• Stable, hands-free retraction
• Independent blade positioning
• Low-profile access around the incision
• Adjustment as the surgical field changes

This combination of compact frame geometry and independently controlled blades allows exposure to be configured around the pediatric patient without placing a complete ring around the operative field.

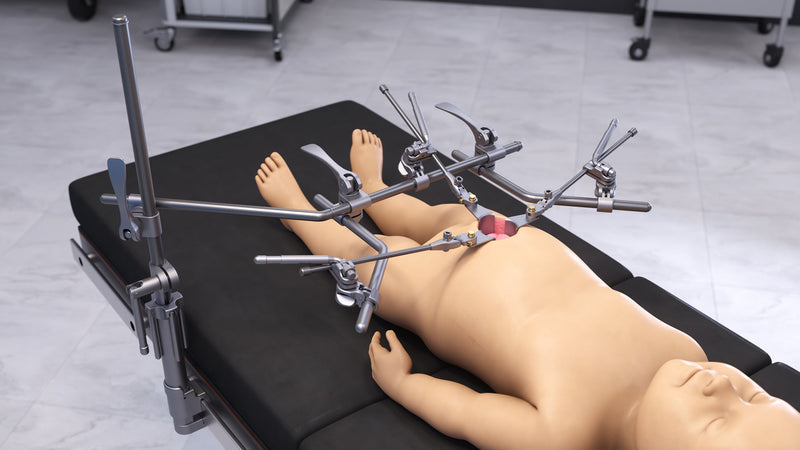

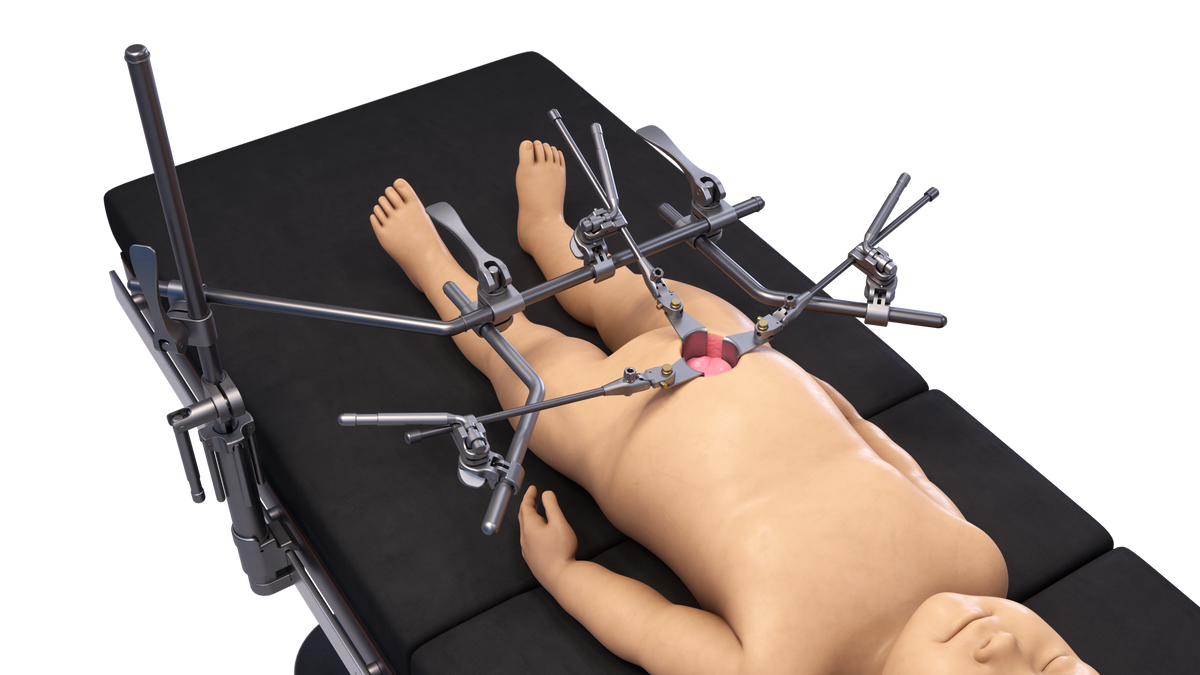

Pediatric-Scaled Open Frame Retraction

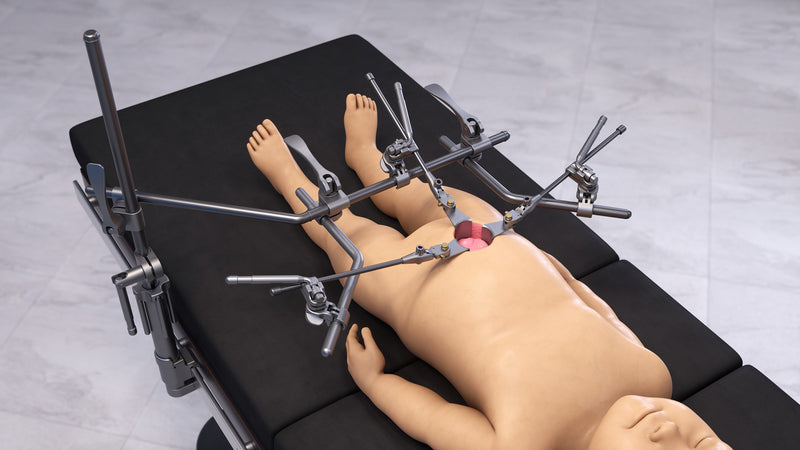

The Pediatric Abdominal Quick Frame Retractor Set uses an open, modular table-mounted frame specifically scaled for smaller pediatric patients. The Pediatric Surgical Atlas configuration uses an Infinite Height Rail Clamp, a 24-inch crossbar, shorter angled arms, and pediatric-sized handles arranged around the abdominal incision.

Quick Angle Handles allow blades to be angled up to 45 degrees above or below the frame, while a Mini Micro-Adjustable Handle provides precise incremental adjustment at an individual retraction point. For infants, an 8-inch Screw Down Handle is available as the recommended shorter handle option.

How Quick Frame Supports Pediatric Abdominal Exposure

The open Quick Frame architecture leaves the central operative field accessible while allowing handles and blades to be positioned around the incision. Pediatric-scaled frame components and blade options help the team configure the setup according to patient size and anatomy.

The configuration supports:

• Open access around the pediatric abdomen
• Low-profile frame and handle positioning
• Independent blade angulation
• Incremental adjustment at selected retraction points
• Pediatric-specific blade and handle options

Pediatric Liver Transplant Exposure

The Pediatric Quick Frame has also been used for complex pediatric upper-abdominal exposure. Michael Wachs, MD, served as Chief of Abdominal Transplant Surgery at Children’s Hospital Colorado and Professor of Surgery at the University of Colorado School of Medicine; during his career, he performed liver and kidney transplants in both children and adults.

Dr. Wachs described his experience with the Thompson configuration as providing “outstanding exposure for pediatric liver transplant.”

Choosing the Right Retractor Set for Pediatric Surgery

Pediatric retractor selection should begin with the patient’s size, incision, operative target, and required directions of retraction. The frame should provide sufficient exposure while preserving working space around a smaller abdominal field.

Surgeons, OR leaders, and value-analysis teams can consider:

• Patient size and anatomy
• Incision and operative field
• Number and direction of retraction points
• Blade and handle requirements
• OR setup and SPD workflow

For very small patients, component selection becomes particularly important. The Pediatric Blade Kit includes multiple smaller blade dimensions, and the Pediatric QuickFrame provides a shorter handle option specifically recommended for infants.

Why Table-Mounted Retraction Matters in Pediatric Procedures

Pediatric abdominal procedures may require several exposure points to remain stable while the surgeon changes instruments or moves between anatomical targets. A table-mounted frame maintains those selected retraction points without relying on continuous manual holding.

This provides stable, hands-free exposure while allowing individual blades to be adjusted independently as the case progresses. Low-profile frame and handle options are particularly useful in a smaller operative field, where unnecessary hardware can compete with the working space needed by the surgical team. Thompson specifically positions its Pediatric RingTrack® for hands-free stability in smaller patients and its Pediatric Quick Frame around low-profile table-mounted exposure and reduced OR fatigue.
